VICTRON Smartsolar MPPT Charge Controllers

From $80.00

Description

VICTRON Solar Controllers

Features: Bluetooth Smart built-in: dongle not needed—The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct- For a wired data connection to a Color Control panel, PC or other devices (cable sold separately)

Ultra-fast Maximum Power Point Tracking (MPPT)—Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

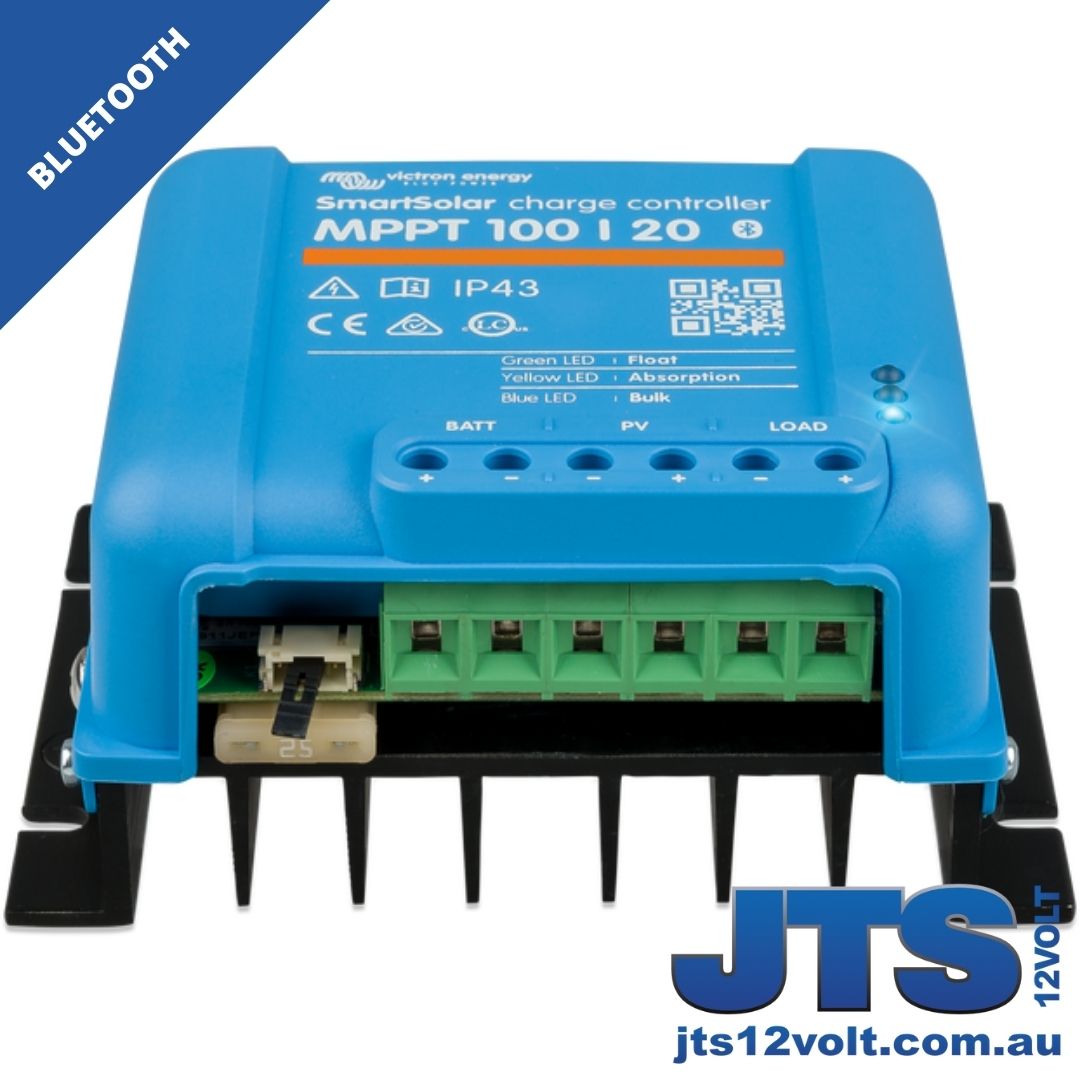

Load output-Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.

Battery Life: intelligent battery management—When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm—See the software section on the Victron website for details.

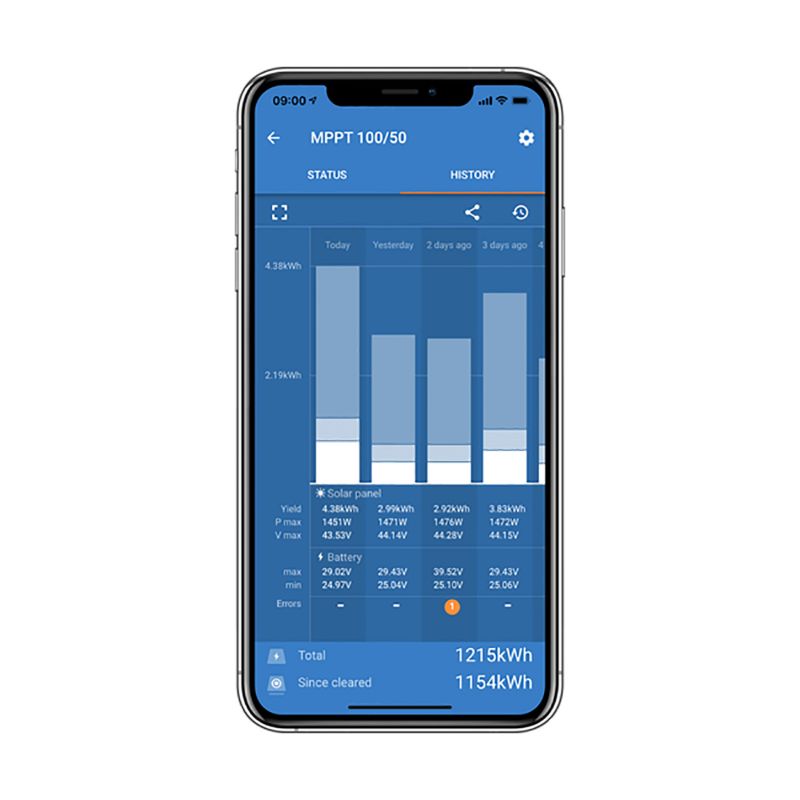

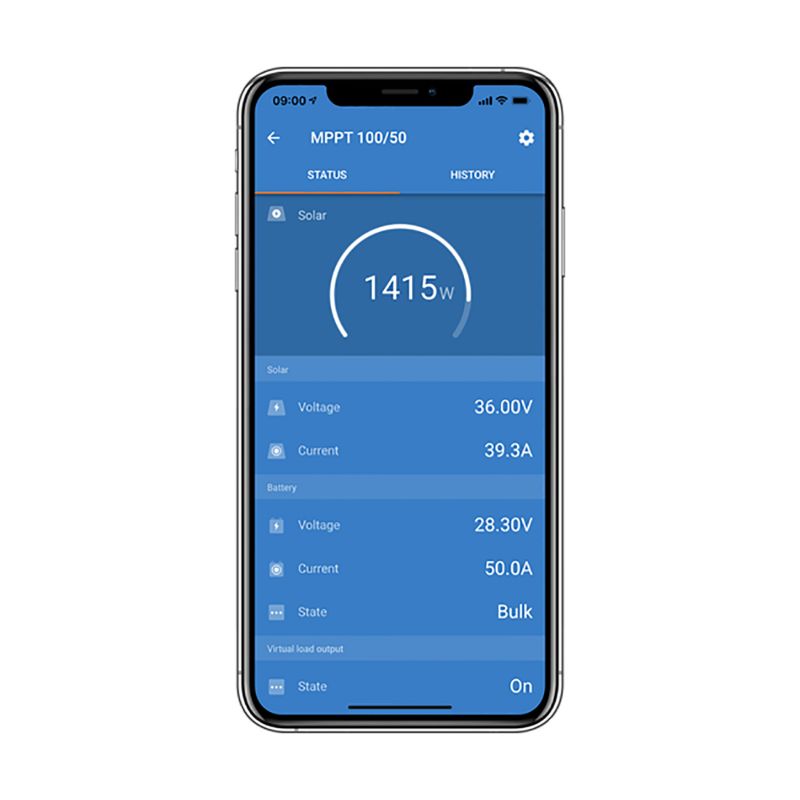

Programming, real-time data and history display options—Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots. VICTRON ENERGY - FROM THE NETHERLANDS

Delivery & Shipping

Domestic Shipping

We offer free shipping on all orders over $250.00. We aim to dispatch all orders within 3 business days of order, where stock is available. For custom orders or backorders we’ll communicate directly with you within 2 business days of ordering.

Most orders are shipped by Australia Post Express Parcel or Border Express Courier, which generally means:

  • 1-3 Days To Major Cities
  • Delivery within 2-14 days Nation Wide

Our shipping insurance applies to approved shipping methods only, we encourage you to purchase additional shipping cover which is charged at 2.5% of the total cost of goods. This additional cover option secures a priority rebuild & express shipping of your order in the event of a shipping loss. By selecting this option, you are ensuring the goods are fully covered during transit and that Custom Lithium will fully cover the shipping and cost of repair or replacement of goods.

If this option is not selected, JT 12 Volt is not liable for the delivery and state of goods as delivery is completed by third-party providers.

If there is an issue with your delivery or you suspect damage based on the state of the packaging, please take photos and DO NOT ACCEPT OR SIGN for the delivery of the items.

International Shipping

We are able to ship your order anywhere in the world, however, we may require customers to organise their own freight for international orders. Please contact us if you wish to have your battery shipped overseas.

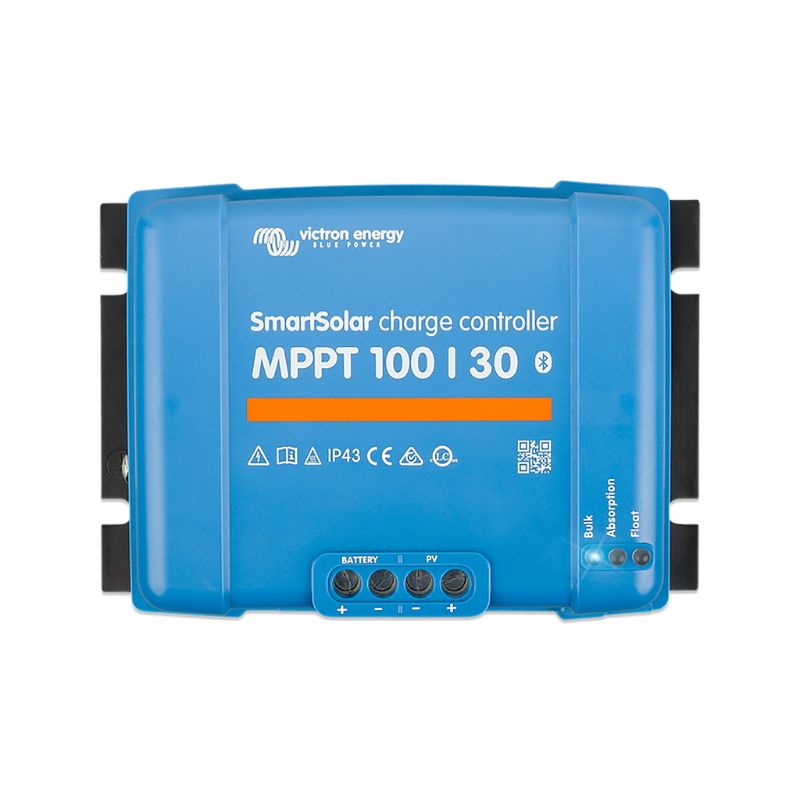

VICTRON Smartsolar Mppt Charge Controllers image 0
